Stainless steel that holds up to a GMP audit

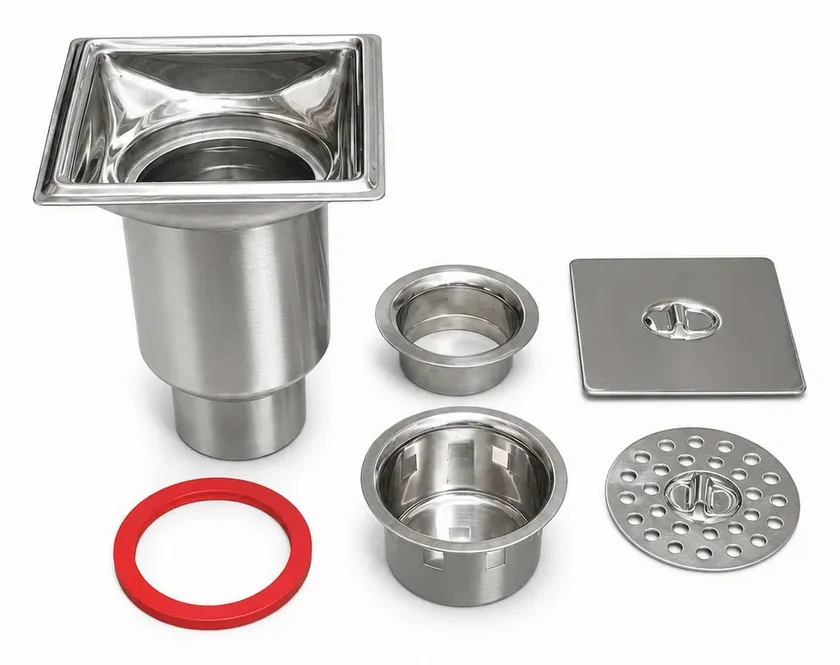

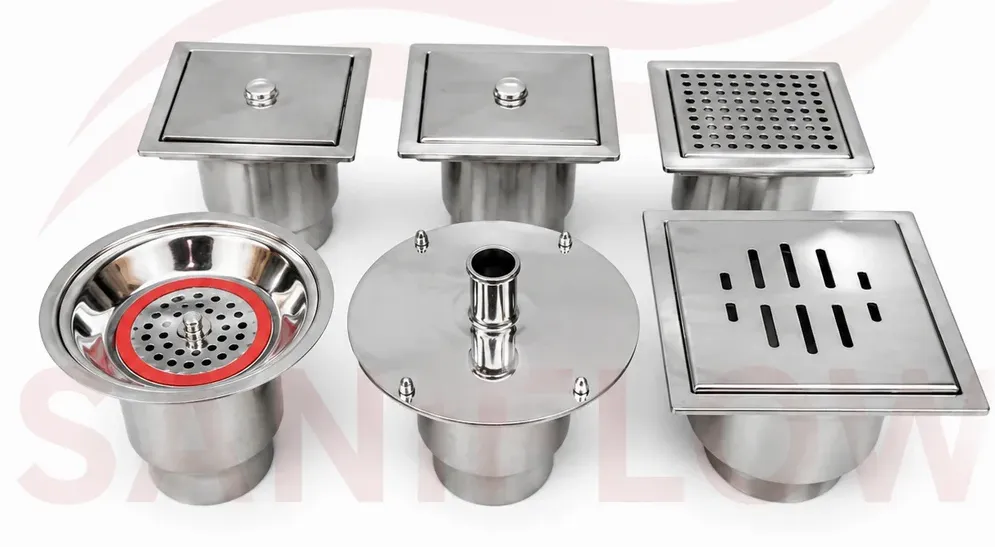

Saniflow fabricates the SS 304 and 316L hardware that pharmaceutical, biotech and food plants live on — filter housings, GMP drain traps, samplers, cleanroom trolleys and process vessels. Catalogue sizes ship from stock; everything else is built to your drawing.

Request a quoteSee the range
  • SS 304 & 316L
  • GMP construction
  • Built to drawing
  • Mill certificates

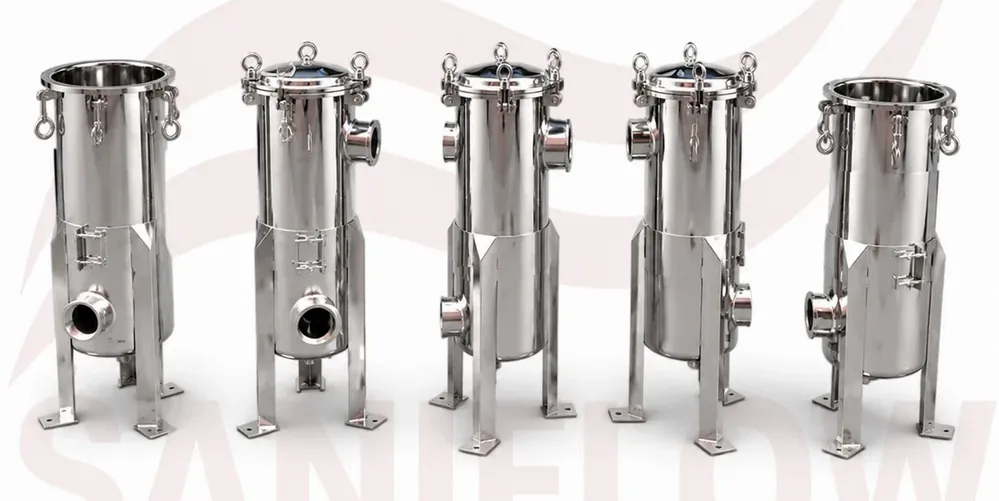

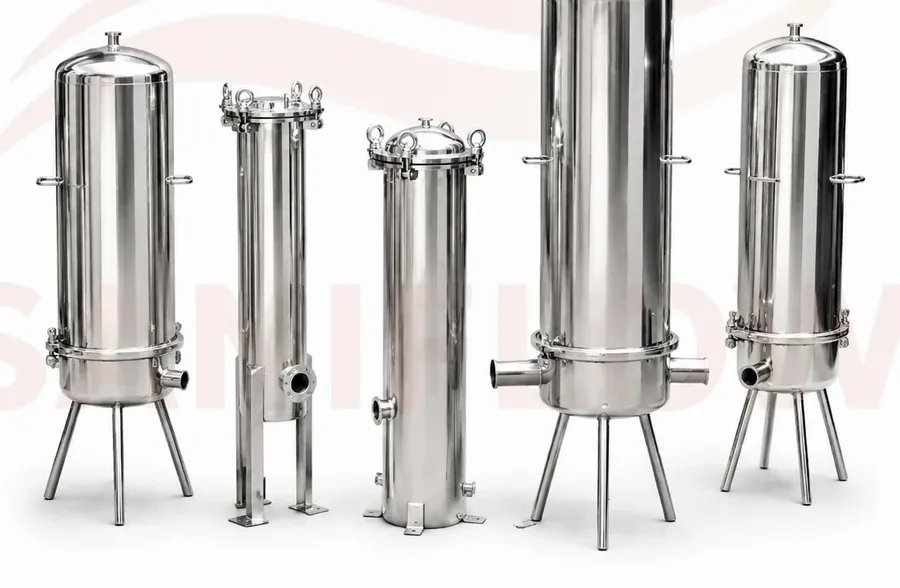

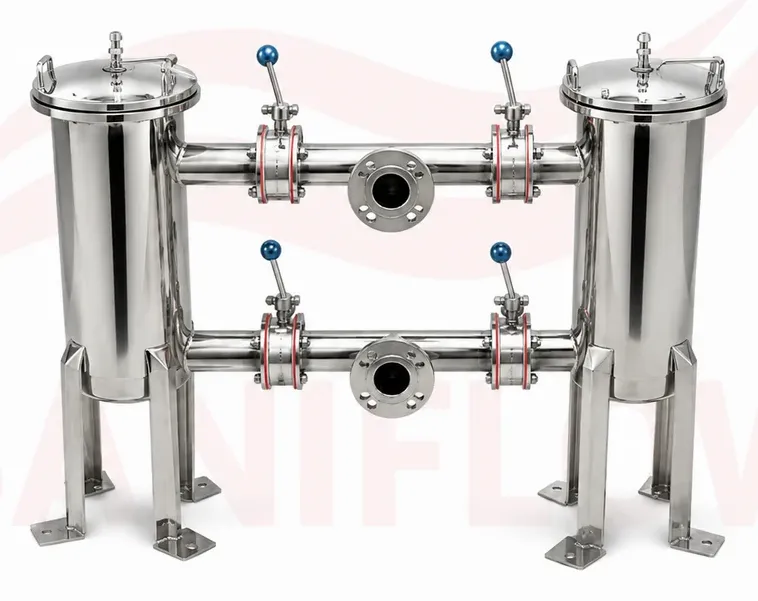

Saniflow stainless steel cartridge and bag filter housings in SS 304 and 316L

53+

Products across eight categories

304 / 316L

Stainless grades fabricated in-house

2–4 wks

Typical lead time after drawing approval

Pan-India

Despatch, ex-works Vasai

What you are buying

Four things a stainless supplier has to get right

Anyone can weld a box out of 304. What decides whether it survives a validation review is the grade you can prove, the corners you cannot clean, the drawing nobody checked and the finish nobody specified.

01

Material you can trace

Every job runs on SS 304 or SS 316/316L sourced against mill test certificates. The grade goes on the drawing, on the part and on the paperwork, so a QA auditor asking "which heat number" gets an answer rather than a shrug.

  • SS 304
  • SS 316 / 316L
  • MTC on request

02

Hygienic by construction

Internal corners radiused, welds ground back and passivated, no dead legs and no crevices for product to sit in. The parts are designed to be cleaned in place and inspected without dismantling half the line.

  • Crevice-free welds
  • Radiused corners
  • Passivated

03

Fabricated to your drawing

Most of what leaves the shop is not a catalogue size. Send a GA drawing, a sample or a photograph of what you are replacing, and it comes back dimensioned to your floor, your port sizes and your headroom.

  • Custom sizes
  • Port to suit
  • Reverse engineering

04

Finish specified, not assumed

Mirror, matt or bead-blasted, called out in Ra rather than adjectives. Contact surfaces are finished to the spec the process needs — a sampling thief and a mopping trolley do not need the same answer.

  • Mirror / matt
  • Ra specified
  • Electropolish on request

The range

53 stainless items, eight categories, one workshop

Everything below is fabricated or finished in Vasai. Sizes shown are the ones that repeat — port sizes, capacities and lengths are changed to suit the line the part is going into.

Filter products by category

The complete range, from a 50 ml sampler to a 100 litre pressure vessel

Not on the list? Most of the shop's output never appears in a catalogue. Send a drawing, a sample or a photo of the part you are replacing.

Send a drawing

Where it ends up

Built for rooms that get inspected

The common thread across these plants is not the product they make — it is that somebody from outside walks the floor and asks what the part is made of, how it is cleaned, and who signed the drawing.

Pharmaceutical
Formulation, granulation, dispensing and QC areas working to cGMP
Biotechnology
Upstream and downstream suites where 316L and passivation are the baseline
Food & beverage
Wet processing halls, dairy floors and washdown zones
Chemical & agrochem
Corrosive service, solvent handling and aggressive powders
Cosmetics & personal care
Batch compounding, filling lines and clean transfer
Nutraceutical & API
Raw-material intake, sampling booths and containment areas

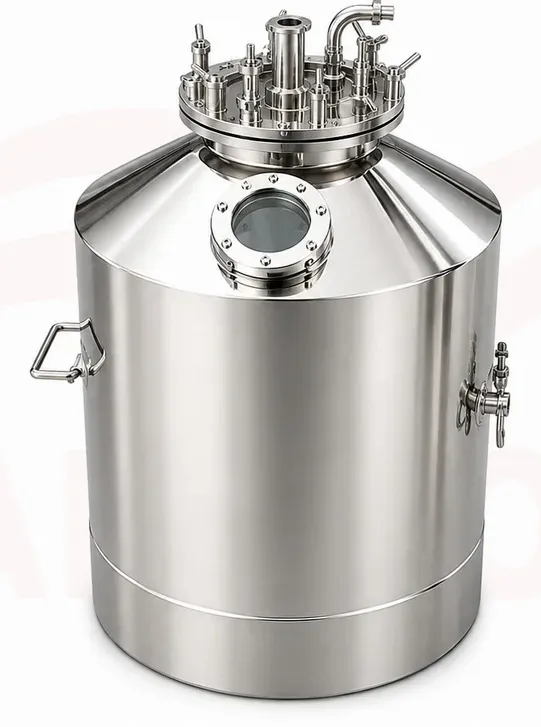

SS 316 pressure vessel with sanitary clamp lid, sight glass and vent

SS 316 pressure vessel, 10–100 L

Sanitary clamp lid, sight glass, vent and outlet valve — built around the batch size rather than rounded to the nearest catalogue drum.

The technical answer

What we build to, before you ask

The questions a purchase engineer sends after the first quote, answered up front. Anything here can be tightened on the drawing — these are the defaults, not the limits.

Grades
SS 304, SS 304L, SS 316, SS 316L; PTFE where the chemistry demands it
Contact finish
Mirror polish, matt (180–320 grit) or bead-blasted; Ra called out on the drawing
Welding
TIG throughout; internal welds ground flush, back-purged on product contact
Passivation
Nitric or citric passivation after fabrication; electropolishing on request
Connections
Tri-clover, flanged, threaded or plain-end to suit the existing line
Documentation
Mill test certificates, dimensional report and material declaration on request
Lead time
Catalogue sizes from stock; fabricated items typically 2–4 weeks from drawing approval
Despatch
Ex-works Vasai, Maharashtra; road and rail freight pan-India, export packing on request

How we work

Enquiry to despatch, without the guesswork

Five steps, and you approve the drawing before anything is cut. The point of the sequence is that no surprise arrives at the goods-in dock.

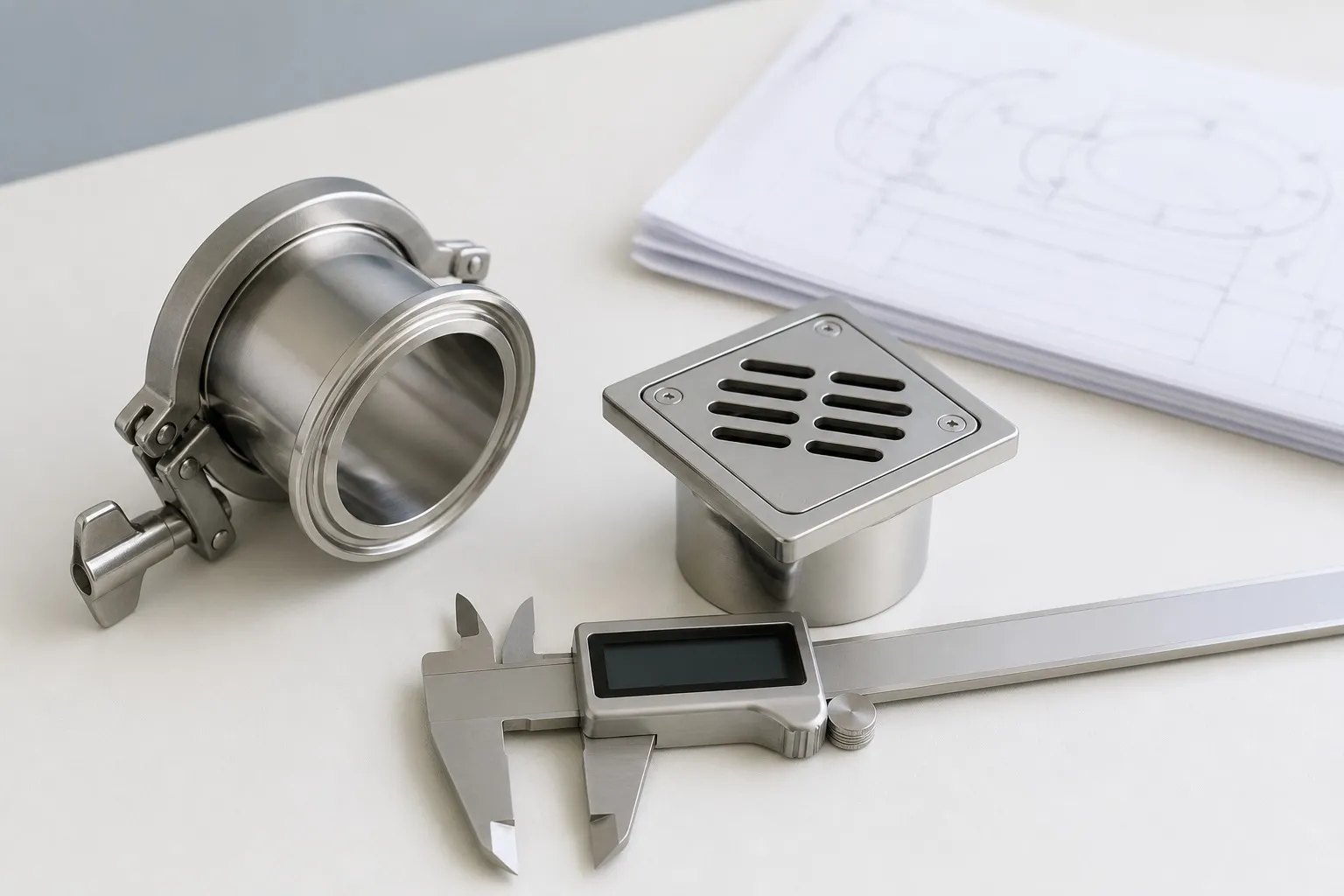

  1. A sanitary tri-clamp fitting and a square floor drain trap on a bench beside a vernier caliper and a drawing

    Enquiry

    Send the size, grade, quantity and where it sits in the line. A photograph of the part being replaced is usually enough to start.

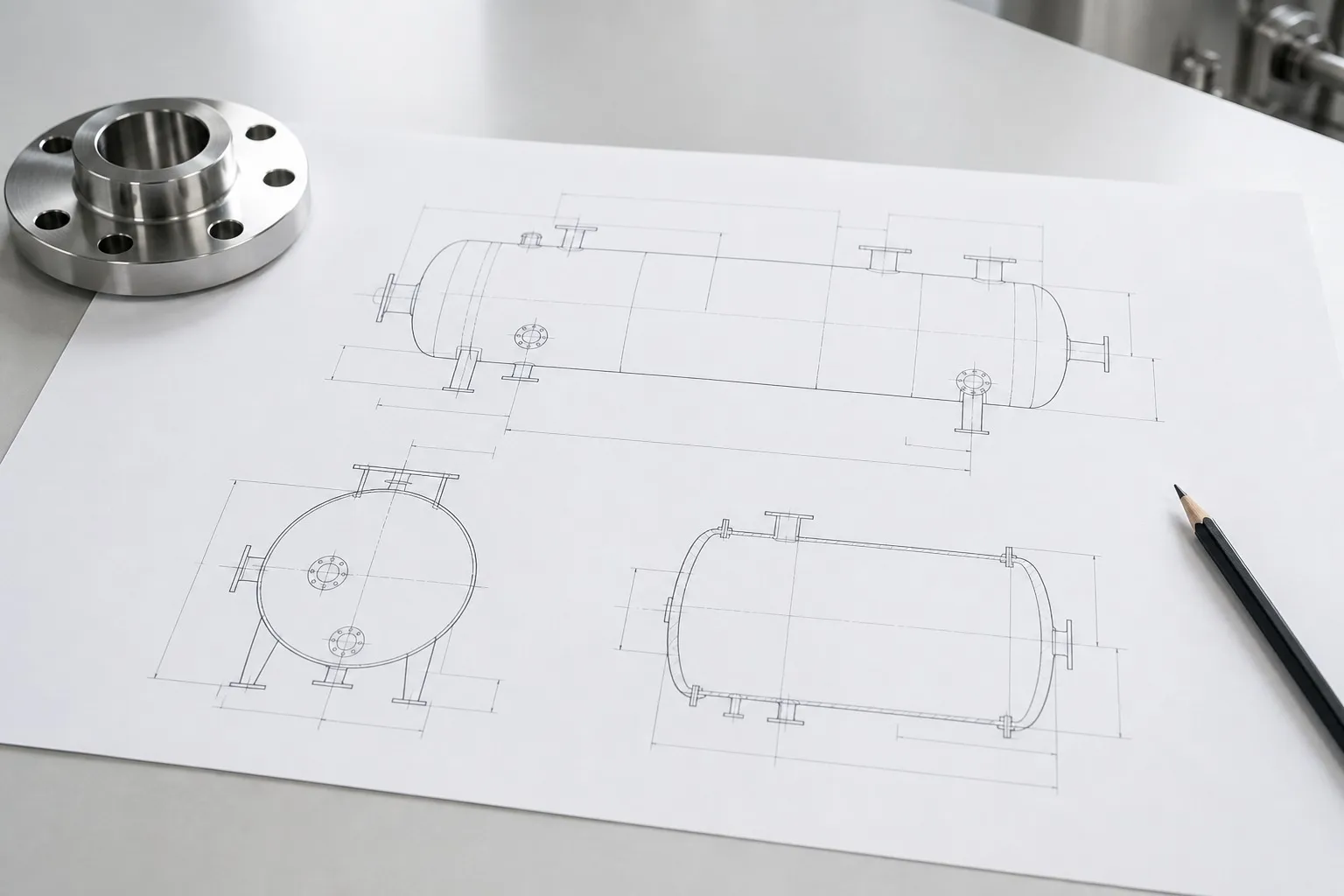

  2. A general-arrangement drawing of a cylindrical vessel on a drafting table, weighted down by a polished flange

    Drawing

    A dimensioned GA comes back for approval. Nothing is cut until you have signed off the port positions and the finish.

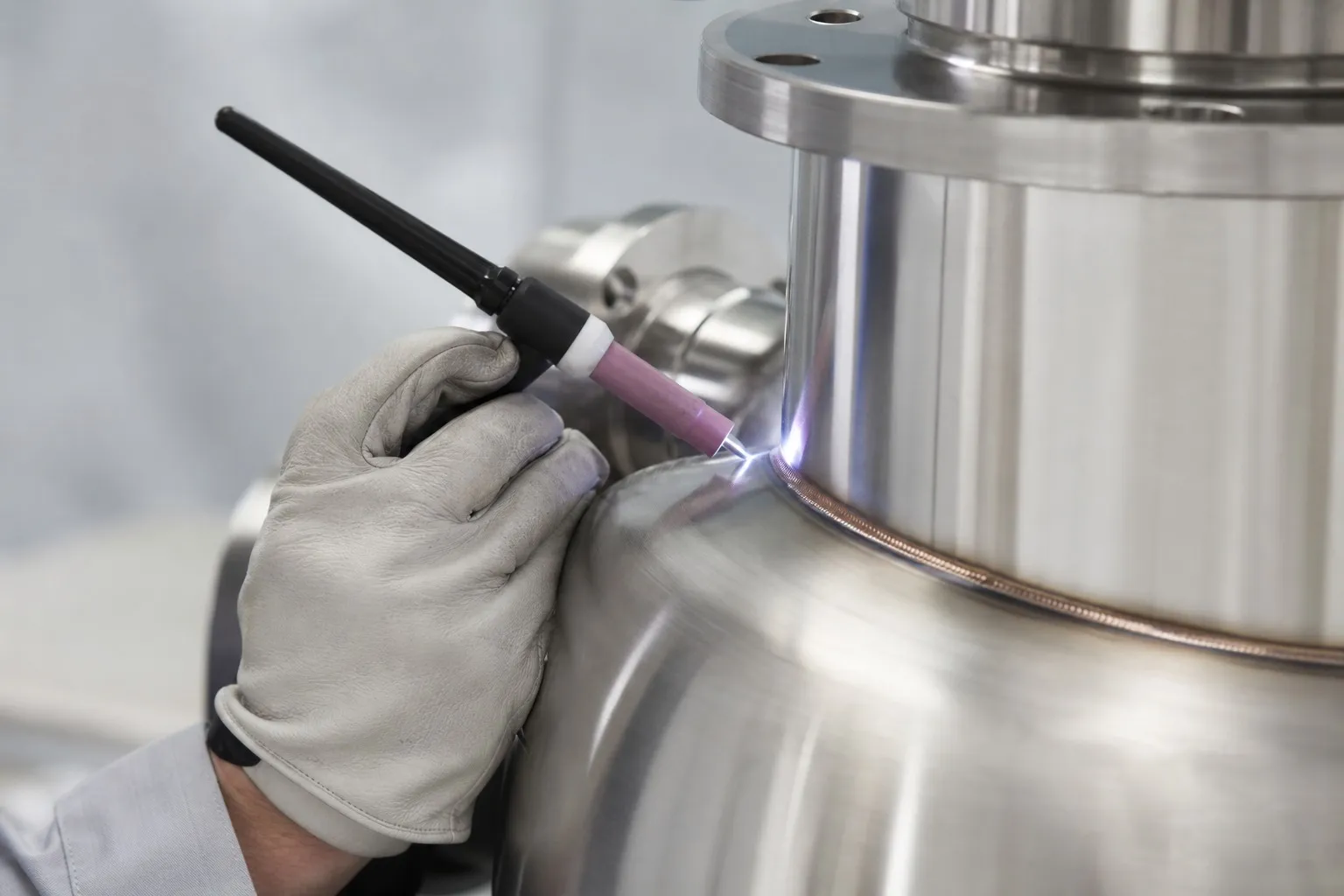

  3. A TIG torch laying a bead along the seam of a polished stainless steel vessel

    Fabrication

    Cut, formed and TIG welded in the Vasai shop, then ground, polished and passivated to the approved spec.

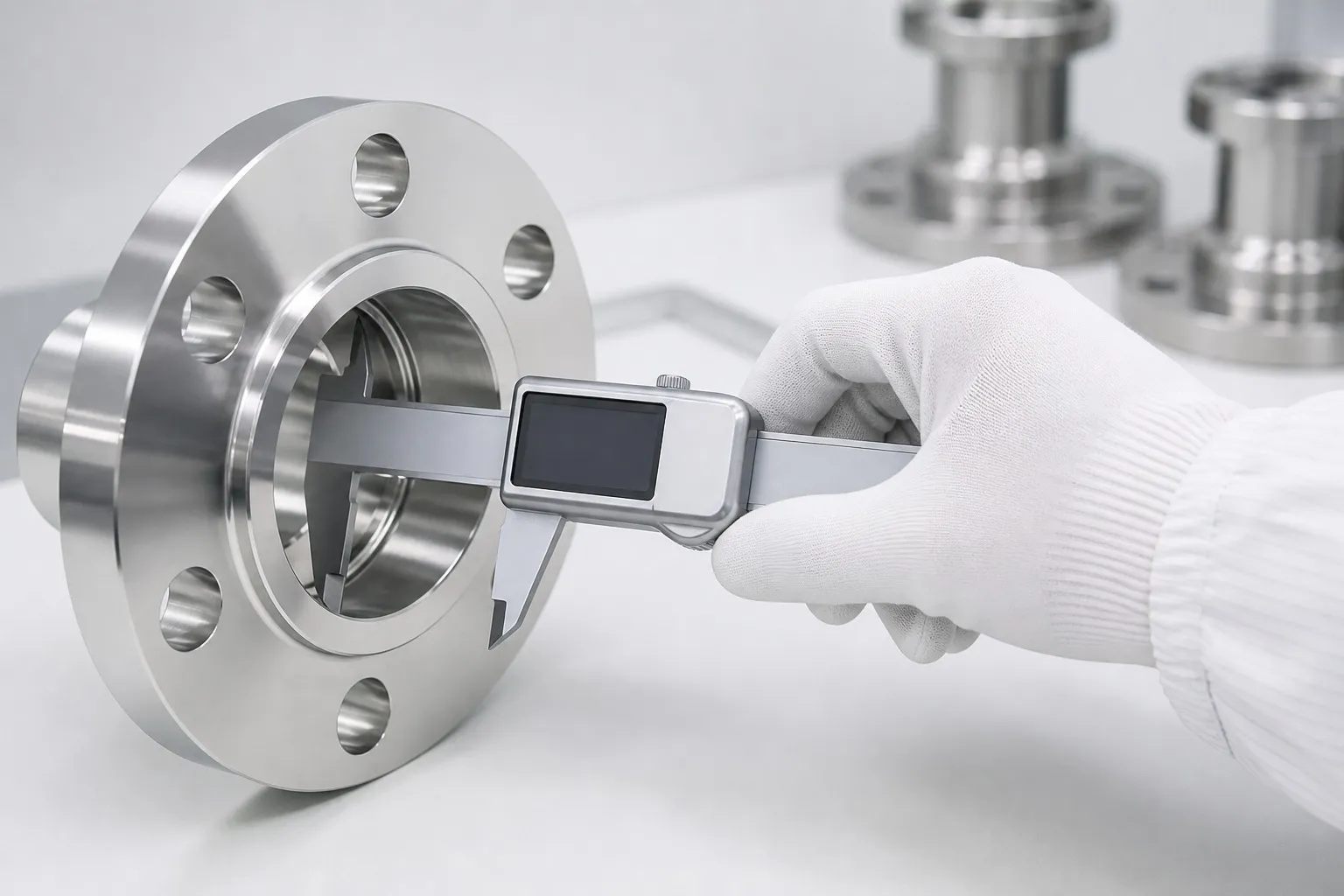

  4. A gloved hand measuring the bore of a mirror-polished sanitary flange with a digital caliper

    Inspection

    Dimensional check, weld inspection and finish verification, with the paperwork you asked for attached.

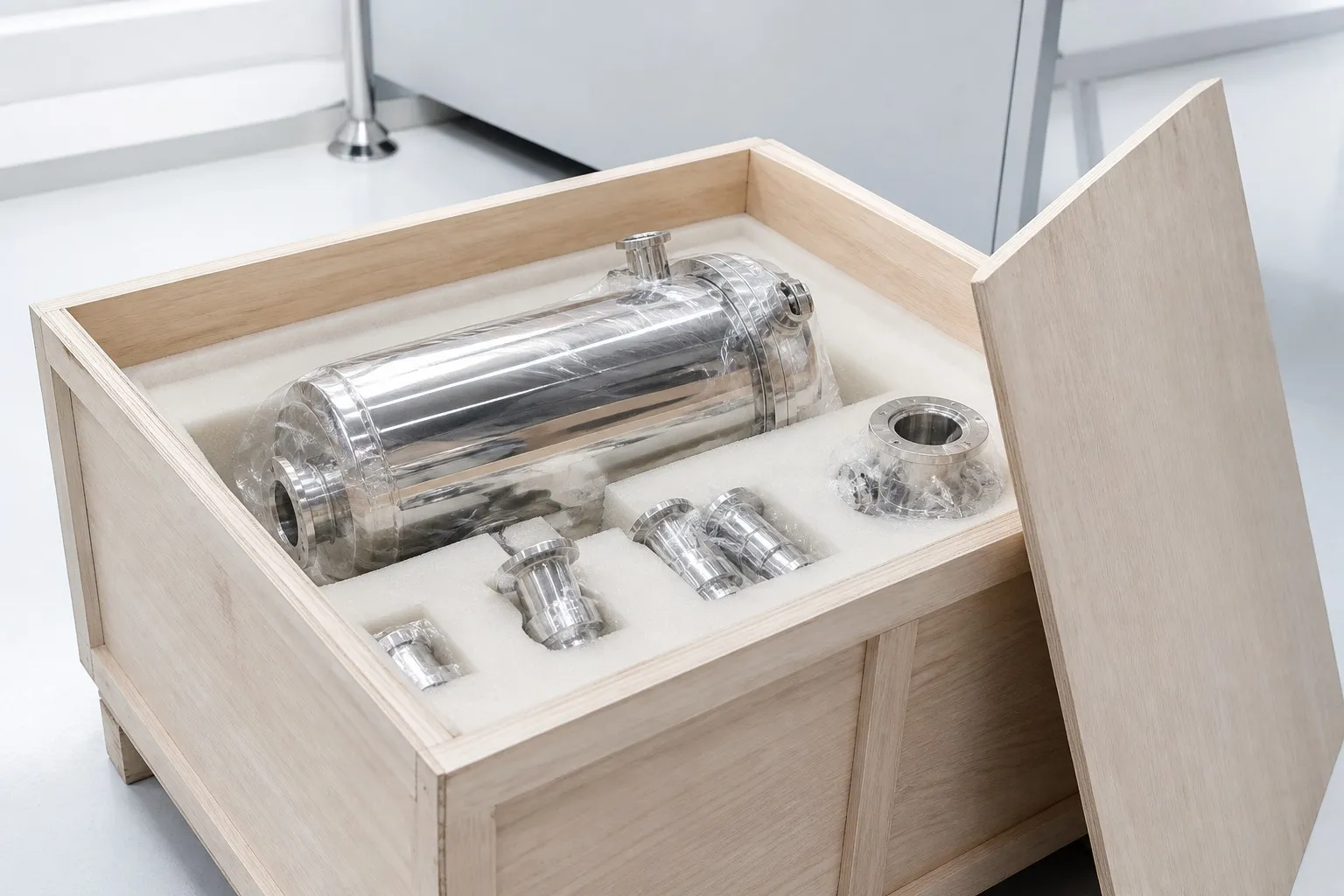

  5. Stainless components wrapped in protective film and packed in foam inside a wooden export crate

    Despatch

    Packed against transit damage and sent ex-works. Export packing and crating on request.

Before you enquire

Questions that come up every time

Do you make sizes that are not in the catalogue?

That is most of the work. The listed sizes are the ones that repeat often enough to be worth naming — filter housings, drain traps, trolleys and vessels are otherwise built to the drawing. Send dimensions, port sizes and the grade you need and you will get a GA back to approve.

Which grade should I be asking for — 304 or 316L?

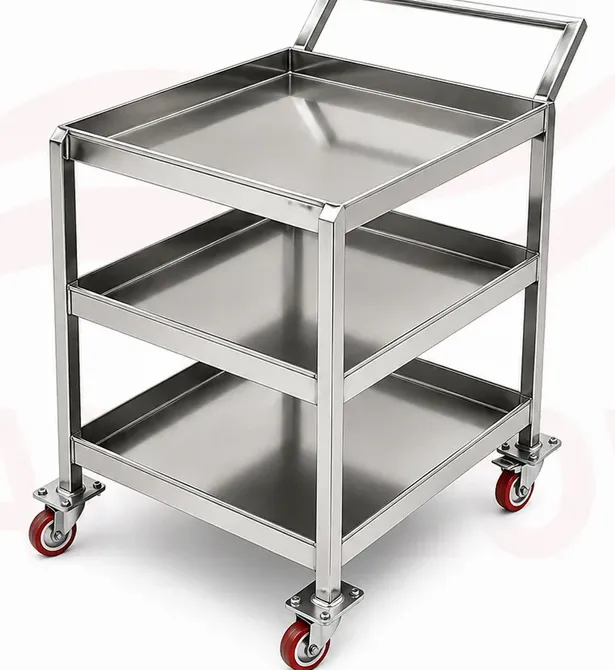

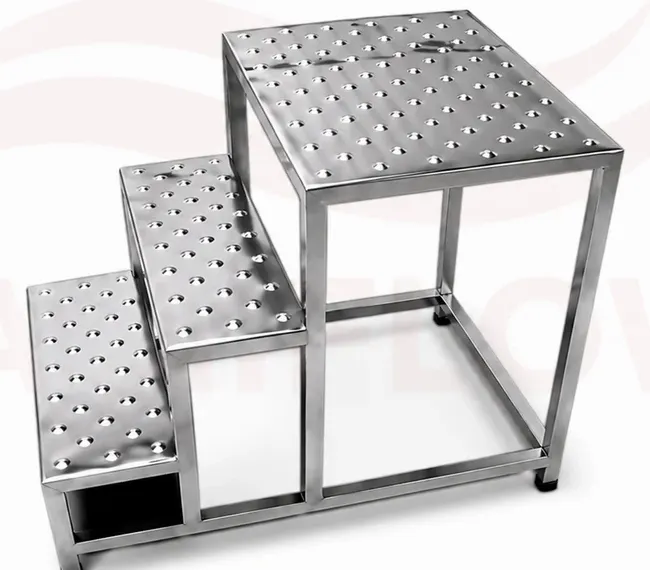

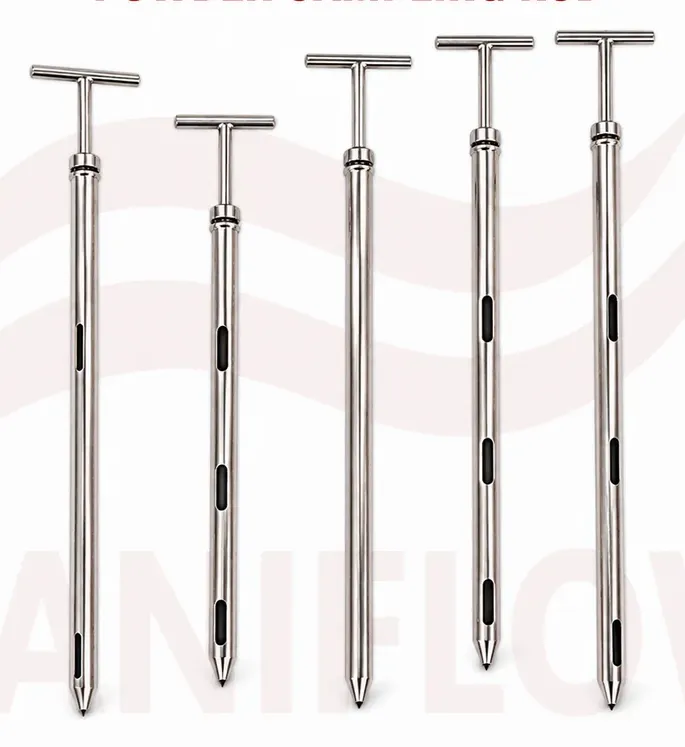

As a rule: 304 for structural and non-contact items in a dry or mildly wet area — trolleys, benches, ladders, SOP stands. 316L where there is chloride, solvent or direct product contact — samplers, vessels, filter housings and anything in a washdown zone. If the service is borderline, tell us the media and we will say which one we would build it in.

Can you supply material test certificates?

Yes. Mill test certificates for the plate and pipe, plus a material declaration for the finished item, are available on request. Ask for them at the enquiry stage so the right heat is reserved for your job.

What finish do the product-contact surfaces come in?

Mirror polish by default on samplers, scoops, jugs and vessel interiors; matt or bead-blasted where a mirror finish is not wanted. Ra values are specified on the drawing rather than left to interpretation, and electropolishing can be added.

How long does a fabricated item take?

Catalogue sizes usually ship from stock. Fabricated items typically run two to four weeks from the day the drawing is approved, depending on size and the polish specified. Rush jobs are worth asking about — say what the date is and you will get a straight answer.

Do you deliver outside Maharashtra?

Yes. Despatch is ex-works Vasai with road and rail freight arranged pan-India. Export packing and crating are available for overseas consignments.

Get a quote

Tell us what the part has to do

Size, grade, quantity and where it sits in the line is enough to price most jobs. A photo of what you are replacing is worth more than a paragraph.
